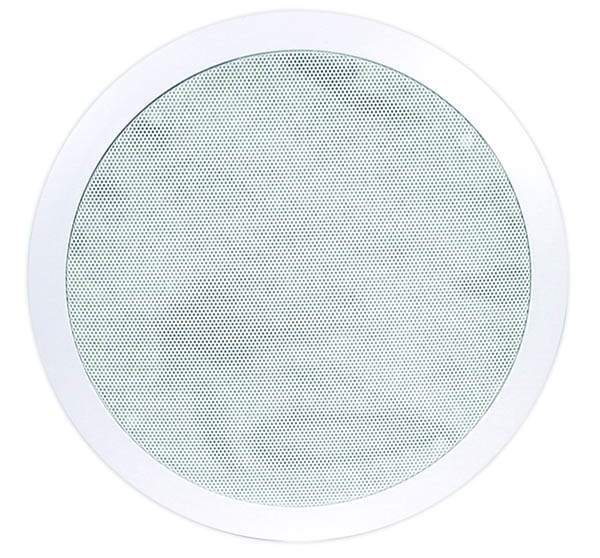

100 Volt Line Speakers Choice of Size 5", 6" & 8"

Code: CSHP
Availability: Please select an option
  • Coaxial, 2-Way Design Delivers a Wide Frequency Response
  • Multiple Power Taps Plus Low Impedance

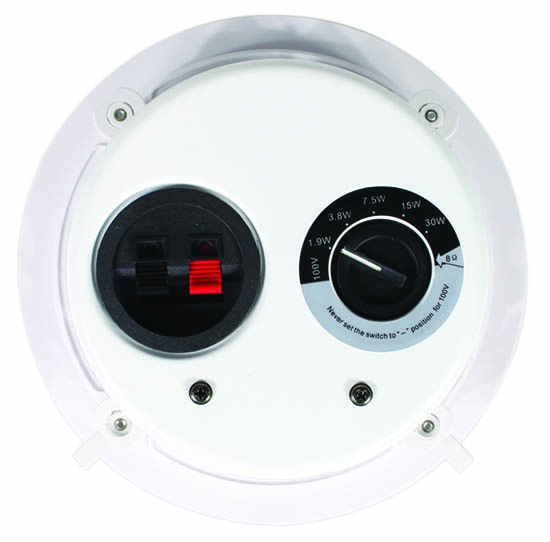

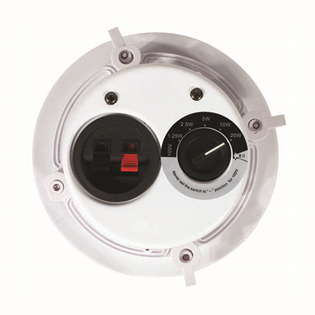

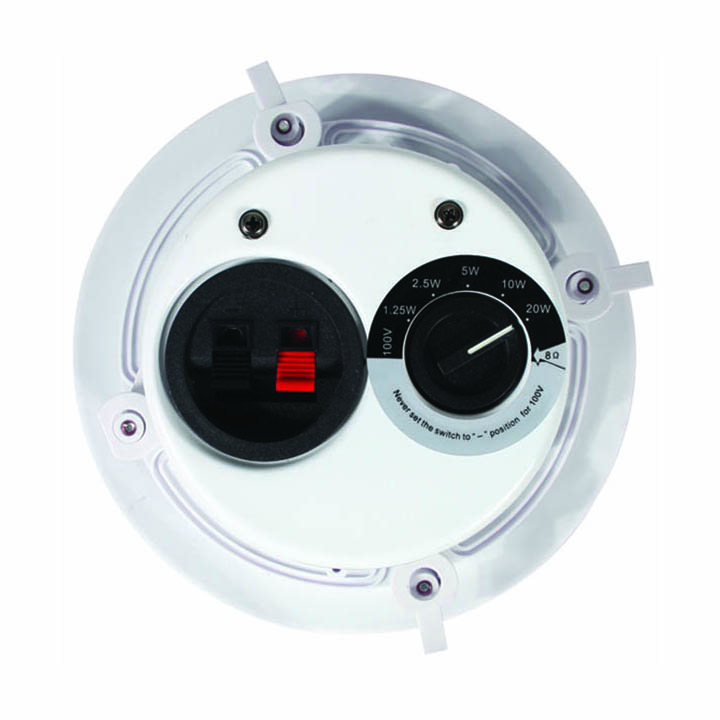

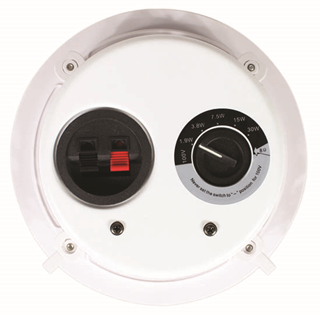

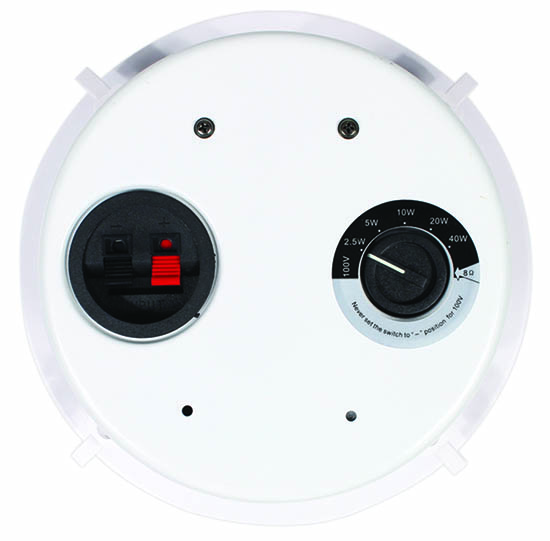

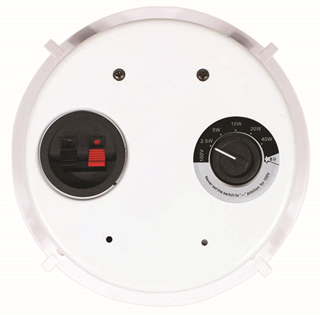

  • Rotary Power Tap

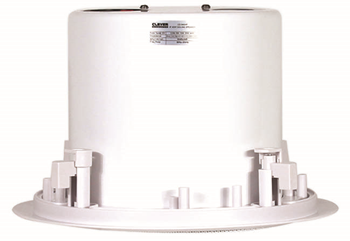

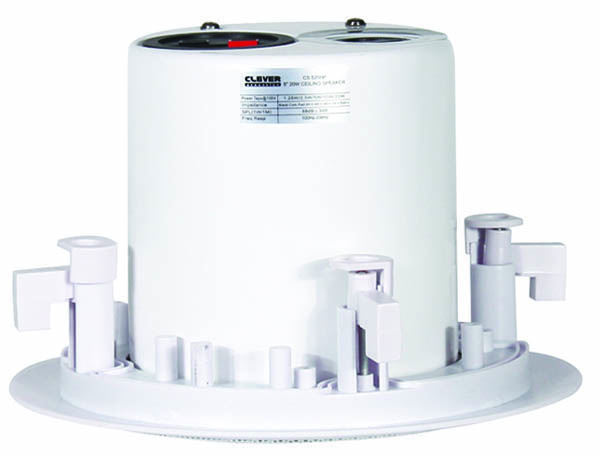

  • Flush Mount Dog-Ear Retaining Clips for Easy Installation
  • Spring Terminals for Simple Installation
  • Supplied with Template to Aid Installation
Please Select:
From £35.50 inc VAT

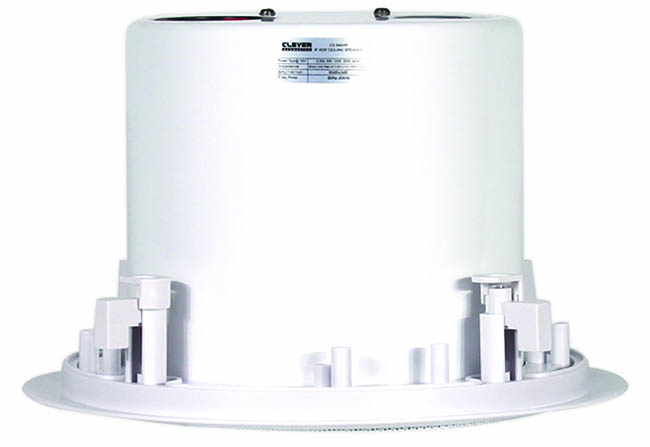

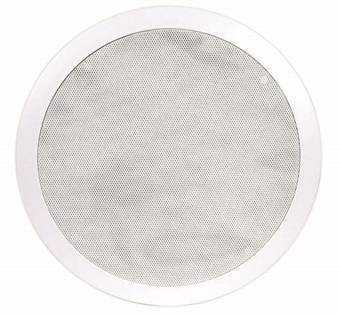

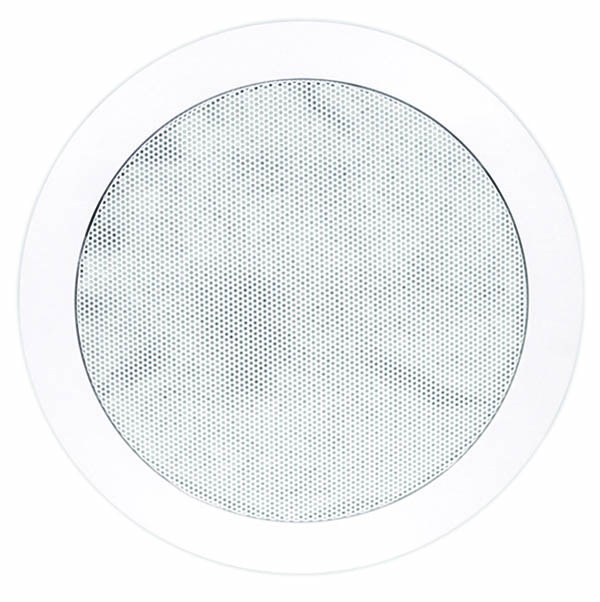

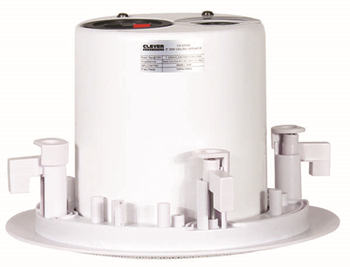

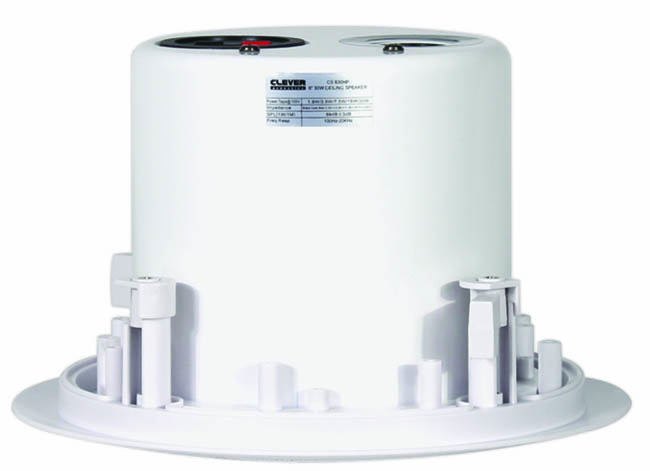

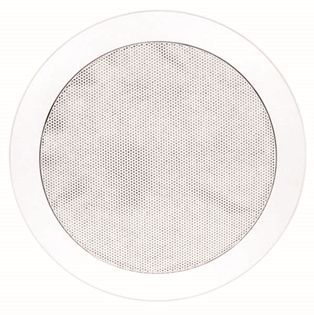

High output ceiling loudspeakers with extended frequency response, ideal for the playback of music and speech reinforcement where audio quality is important. The CS HP series utilise a coaxial design complete with HF tweeter for crystal clear high tones plus metal enclosure for enhanced low frequencies. These loudspeakers feature flush mount dog-ear retaining clips and a installation template is supplied making them simple to install. Suitable for either low impedance or 100V line operation.

Input Voltage: 100V, 8 Ohms
Power Taps @100V: 1.25W, 2.5W, 5W, 10W & 20W
Speaker: 5"
Sensitivity: 88dB +/-3dB
Max SPL: 101dB
Impedance: 4K, 2K, 1K, 500, 400 Ohms
Frequency Range: 100Hz - 20kHz
Cut-out: 180mmØ
Dimensions: 152 x 202mmØ
Weight: 1.4Kg

Input Voltage: 100V, 8 Ohms
Power Taps @100V: 1.9W, 3.8W, 7.55W, 15W & 30W
Speaker: 6"
Sensitivity: 89dB +/-3dB
Max SPL: 104dB
Impedance: 2.6K, 1.3K, 670K, 330, 165 Ohms
Frequency Range: 95Hz - 20kHz
Cut-out: 208mmØ
Dimensions: 165 x 233mmØ
Weight: 1.6Kg

Input Voltage: 100V, 8 Ohms
Power Taps @100V: 2.5W, 5W, 10W, 20W & 40W
Speaker: 8"
Sensitivity: 90dB +/-3dB
Max SPL: 106dB
Impedance: 2K, 1K, 500, 250, 125 Ohms
Frequency Range: 90Hz - 20kHz
Cut-out: 245mmØ
Dimensions: 195 x 275mmØ
Weight: 2.5Kg
