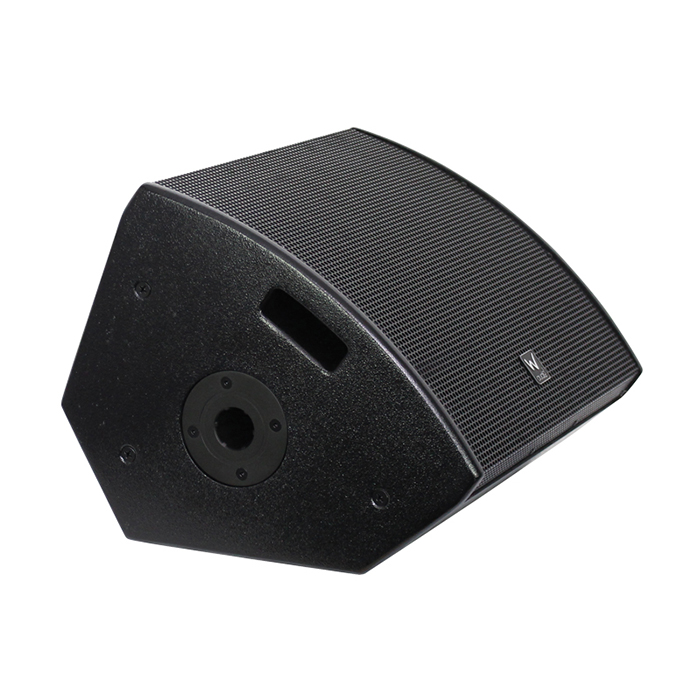

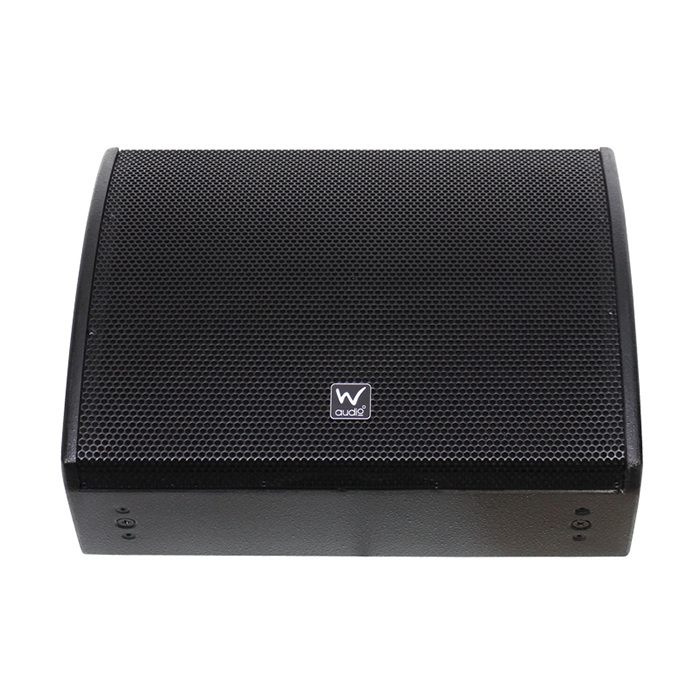

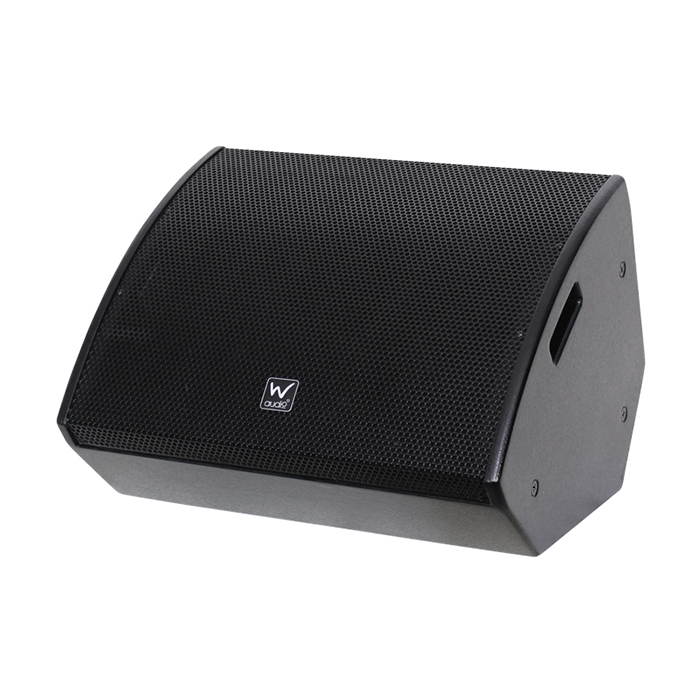

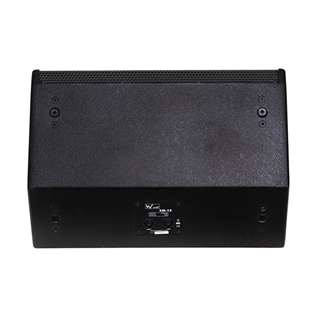

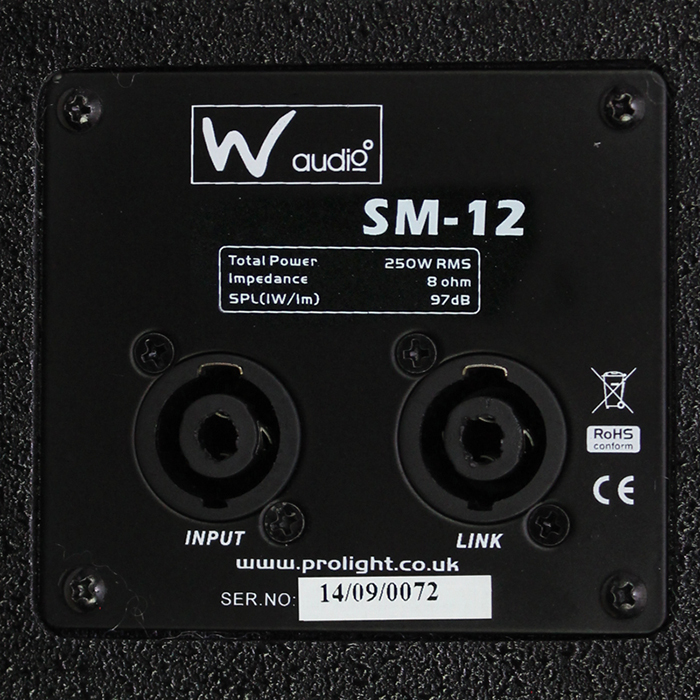

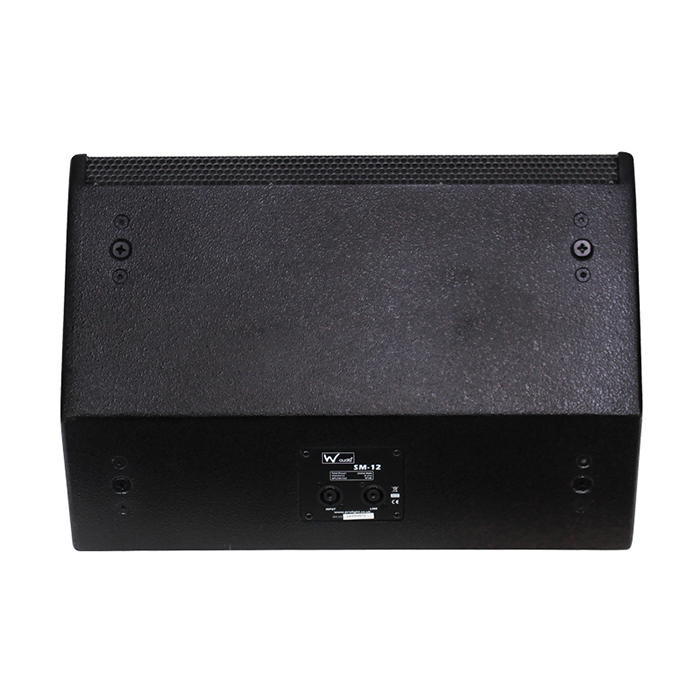

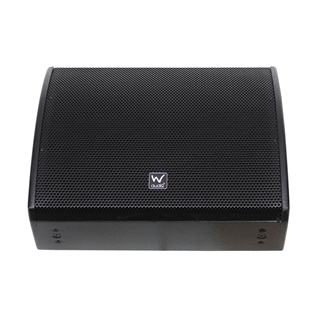

12 Inch Passive Stage Monitor

Code: SM12
Availability: In Stock
  • 12 Inch Driver
  • Horn Flare
  • Passive Design
  • Top Hat
  • Rigging Points
  • 250 watt
£219.00 inc VAT

A 12 inch passive stage monitor. Loudspeakers designed to meet precise requirements in professional applications. Exhibiting a flat output and phase responses, full-range bandwidth, and exceptional impulse response, the SM Series far exceeds the capabilities of conventional stage monitors while offering the simplicity of setup and operation. The wide frequency range enables accurate reproduction of both vocals and instruments with a high gain before feedback, and provides excellent intelligibility at high output levels with low distortion and no colouration added to the signal. The loudspeaker’s high-frequency section comprises of a diaphragm compression driver coupled to a constant directivity horn.

Continuous Power (RMS): 250W
Peak Power: 1000W
Coaxial Speaker Reduces Feedback
Maximum Calculated SPL: 124dB
Sensitivity (1W/1m): 97dB
Frequency Range (-10dB): 60Hz - 20kHz
Frequency Range (-3dB): 70Hz - 20kHz
Crossover Frequency: 2.8kHz
Horizontal Coverage: 80°
Vertical Coverage: 80°
LF Transducer: 12"
HF Transducer: 1"
Nominal Impedance: 8O
Dimensions: 365 x 500 x 445mm
Weight: 16.9kg
