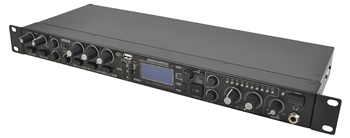

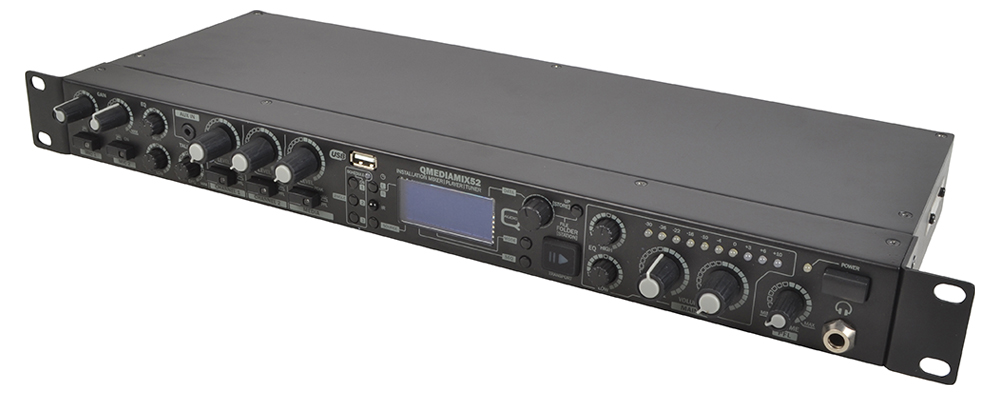

5 Channel Audio Mixer with Media Player, Bluetooth & FM Tuner

Code: QMM2320V2
Availability: Expected Soon
  • 2 Stereo Inputs with Signal Pre-Set LED, Rear Panel Gain & Front Panel Level Control
  • Front Panel 3.5mm Stereo TRS Input

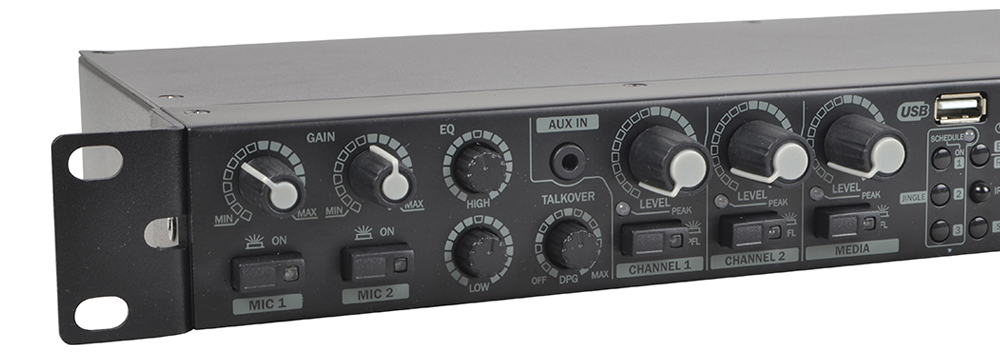

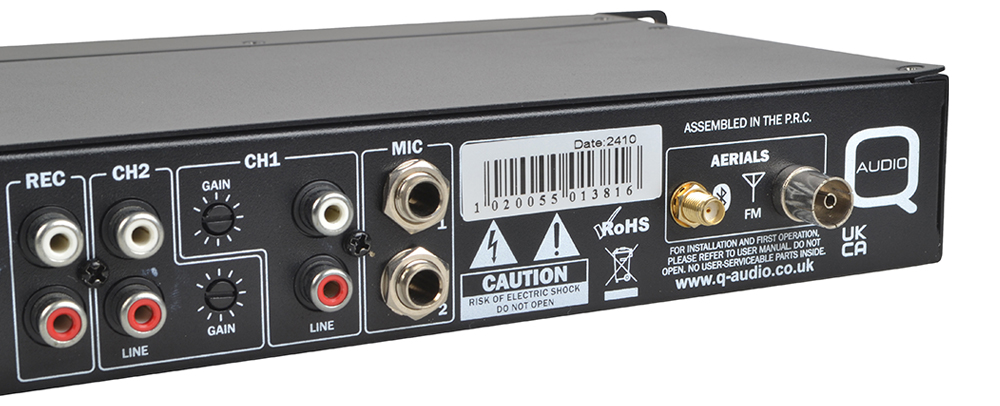

  • 2x Mic Inputs with 1/4" TRS Connectors
  • Voice Specific 2-Band EQ Plus On Air Switches for Mic Inputs
  • Adjustable Auto Talk-Over for Automatic Music Level Reduction when Microphone is Used

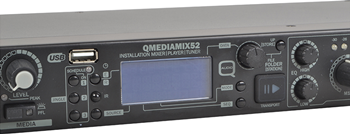

  • Internal Media Player/Tuner with File/Folder Access for USB Thumb-Drives up to 16GB/2000 Songs

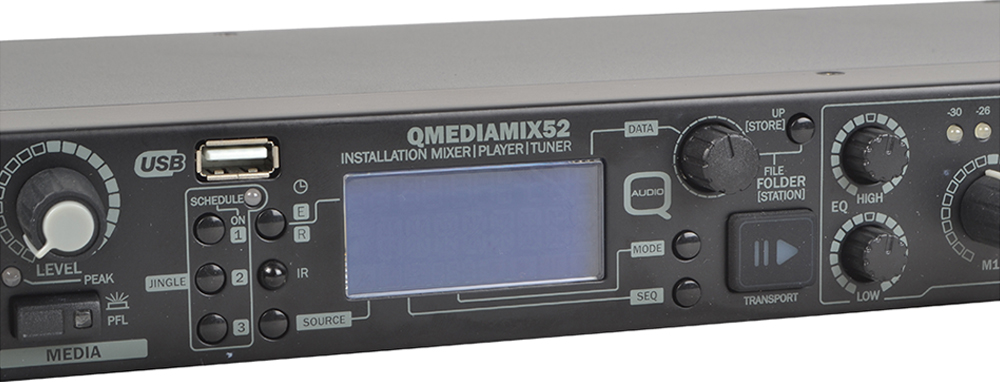

  • MP3 Tag Readout on Large LCD Display

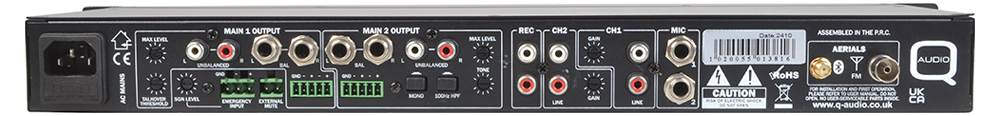

  • Two Stereo Main Outputs with Independent Level Control

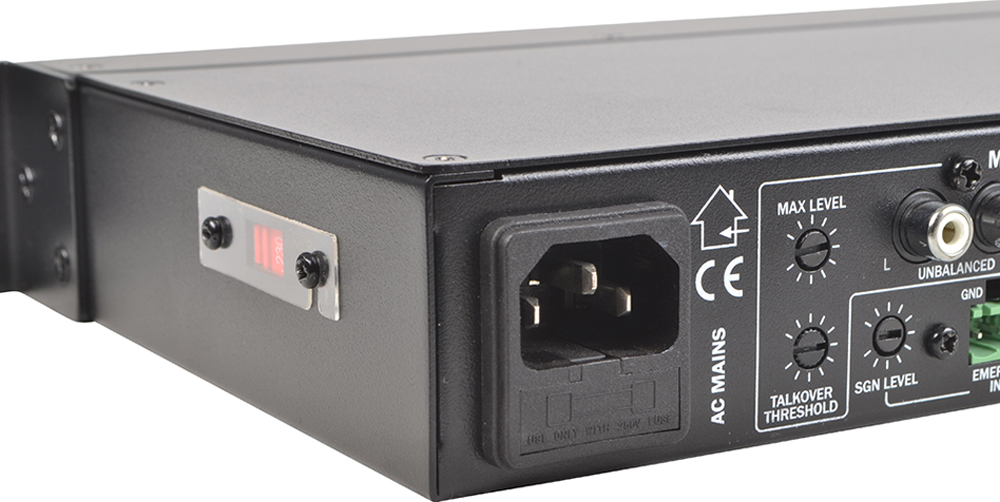

  • Rear-Side Adjustable Maximum Level Control for each Output

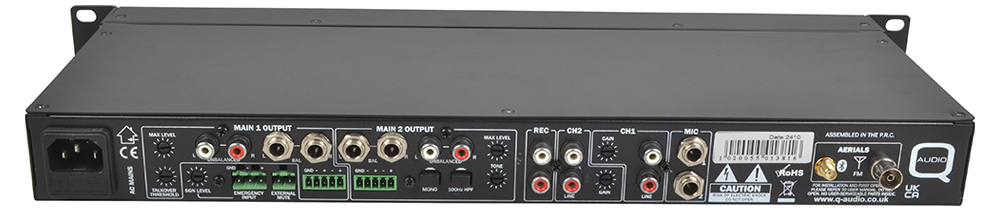

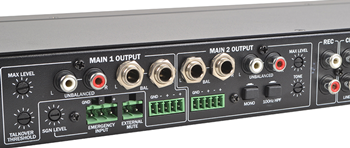

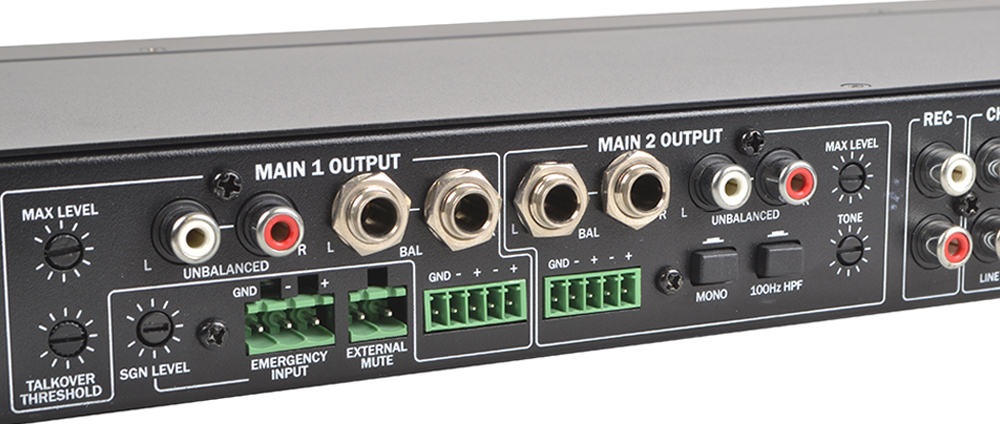

  • Balanced TRS & Phoenix Output Connectors for Both Outputs
  • Emergency Input which Shuts Down Master Output when Emergency Signal Comes In & Plays Emergency Signal Instead
  • Output Mute Contact to Externally Mute the Output

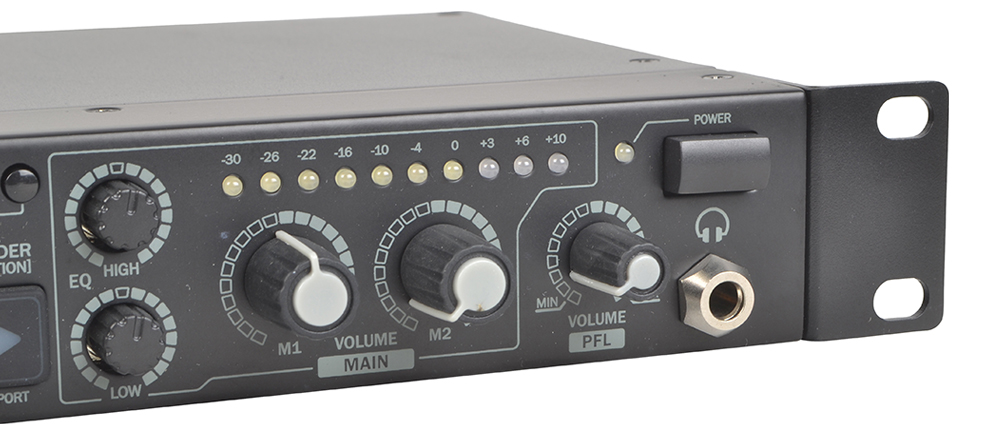

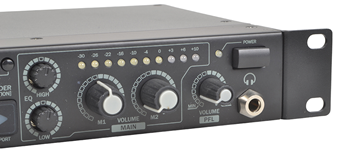

  • Headphone Section with Volume Control
£215.00 inc VAT
Add

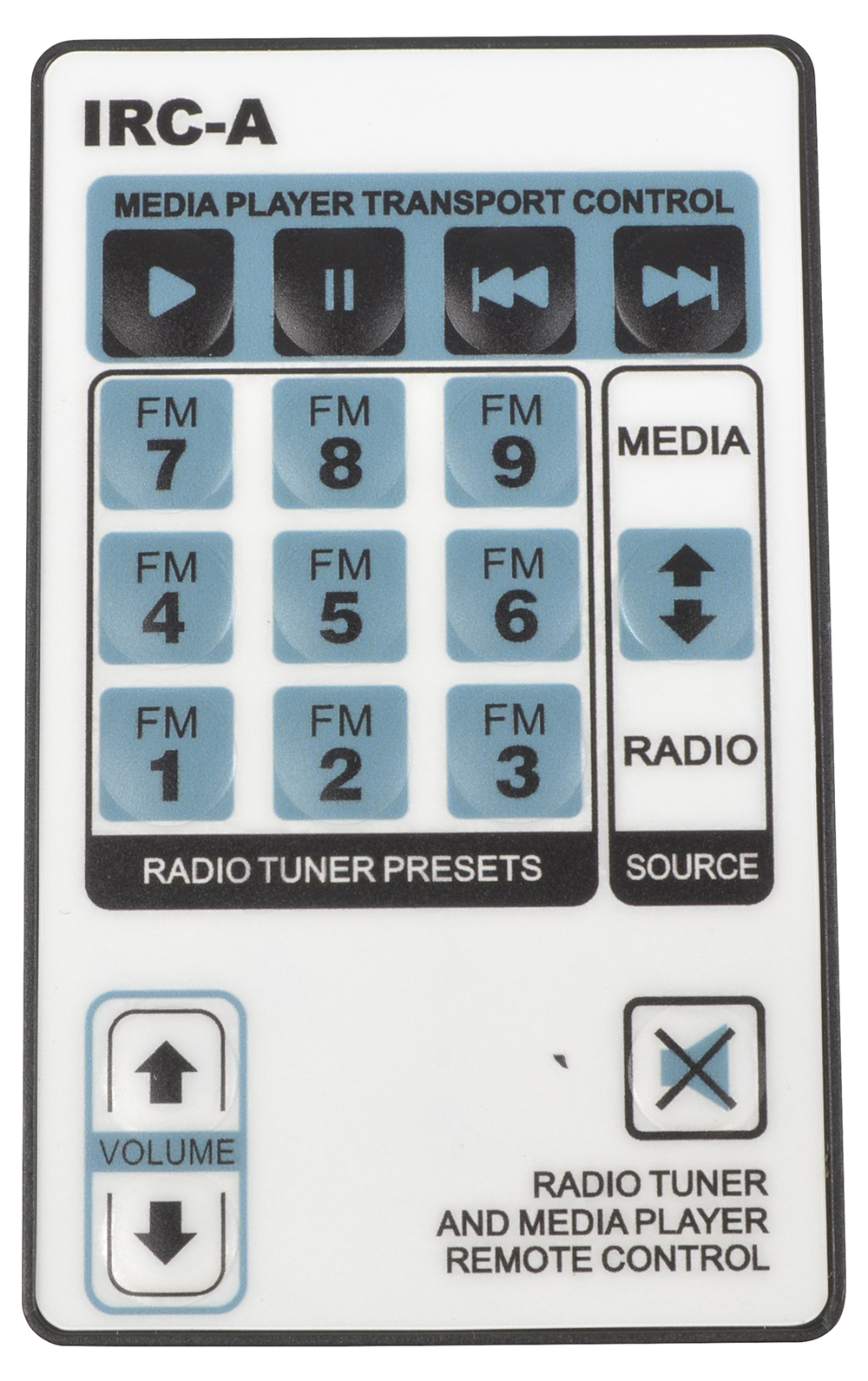

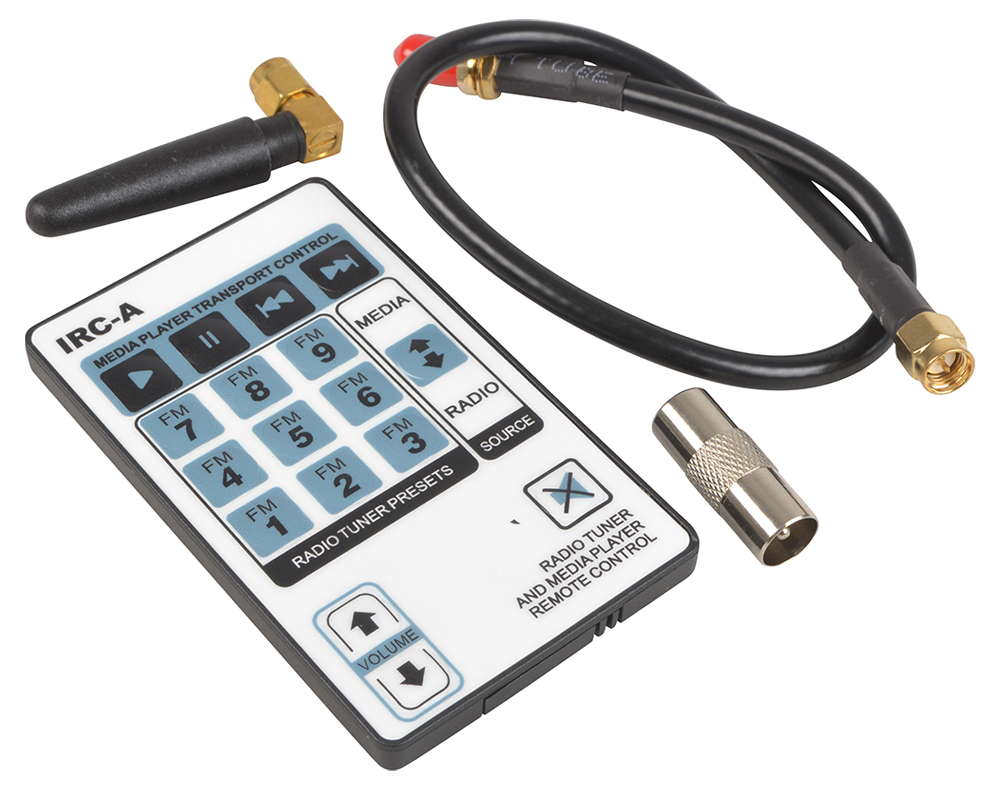

The QMM2320V2 Media Preamp/Mixer combines a 3-input stereo mixer with 2 microphone inputs and an internal media player. The auto-talk over feature of the microphone section allows automatic attenuation of the music signal by an adjustable amount when speaking into a microphone. This makes the unit a perfect companion for fitness instructors or presenters who have no hand free to lower the program level while speaking. The internal media player sports an IR remote for added comfort; it also features a jingle player, which runs both in a one-shot and a scheduled mode. Two master outputs with fire evacuation facilities like external mute and emergency signal priority functions complete the feature set of this comprehensive unit. The QMM2320V2 is the ideal core unit for fitness, hospitality and mobile sound systems.

Unit Size: 1U
Dimensions: 483 x 45 x 152mm
Weight: 2.2Kg
