Anytronic 4 x 10A 4 Channel Dimmer/Switch Pack with Fader Panel

Code: DP410CB
Availability: Made to Order - Approx. 14 Days
  • Wall Mounting Dimmer Pack
  • Built-In Type C Circuit Breaker
  • Dimming or Switch Mode
  • DMX or RS232 Control
  • 4 Way Manual Fader Panel
  • Panel Finished in Brushed Steel
£450.00 inc VAT
Qty:
Click to Enlarge

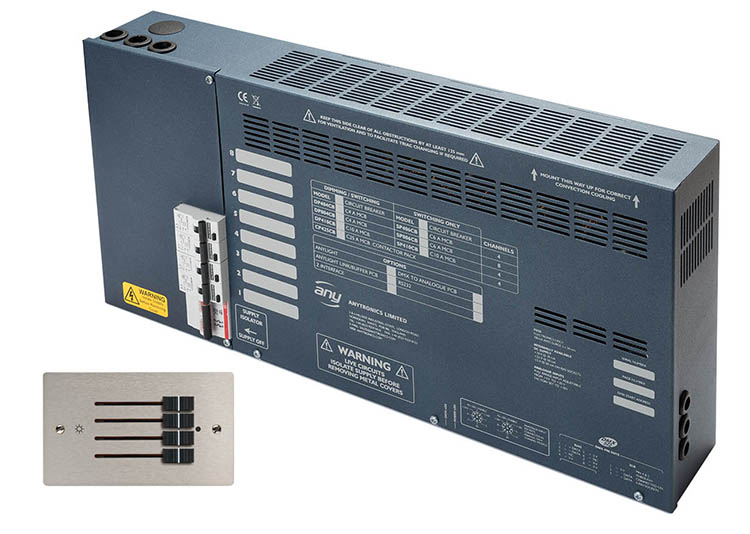

A professional grade 4 channel dimming/switching pack suitable for permanent install use. This kit comes supplied with a wall mounted modern looking four channel slider controller for simple use in venues where multiple people will be controlling the lighting. The dimmer pack itself is to be wall mounted and has a maximum rating of 10A per channel with each channel being protected by a type-C circuit breaker. The DP410 dimmer pack can also be controlled externally via 5-pin DMX connections, RJ45 or screw terminals or the analogue route of DIN and RS-232 sockets. Please note that the wall area required to facilitate mounting, cooling and ventilation is 365mm x 600mm (HxW).
Supply: Single Phase 230Vac
Max Load: 4 x 40A
Current Rise Time: >160uS
Control: DMX & 0 to 10v Input
Preheat: 0-25%
Dimensions: 240 x 520 x 85mm
Weight: 7.1Kg
