The F33 Standard Horizontal T Piece is a component of the Global Truss F33 series, which is a popular trussing system used in the entertainment industry for constructing temporary structures such as stages, lighting rigs, and exhibition booths.

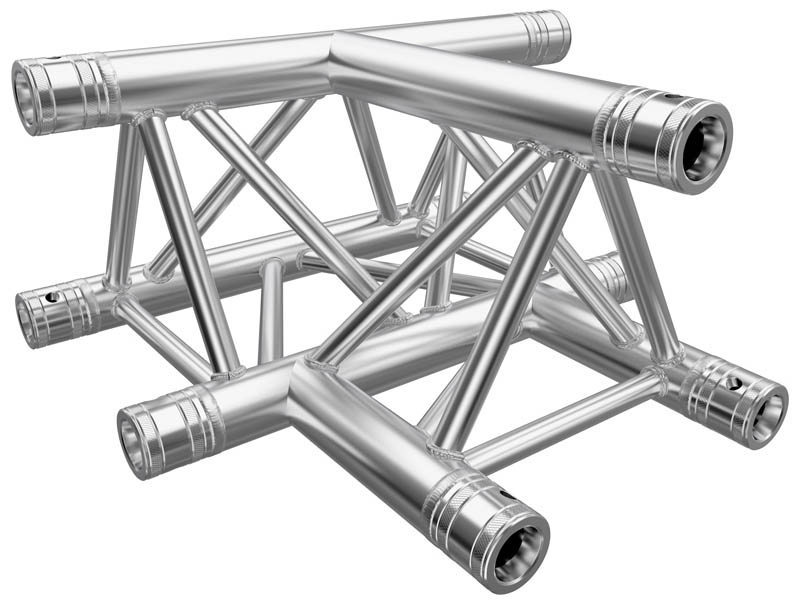

The F33 Standard Horizontal T Piece is designed to connect three truss sections together at a right angle, forming a T-shaped configuration. It has three main connection points: one on the vertical side and two on the horizontal side. These connection points allow for the attachment of additional truss sections, enabling the construction of larger and more complex truss structures.

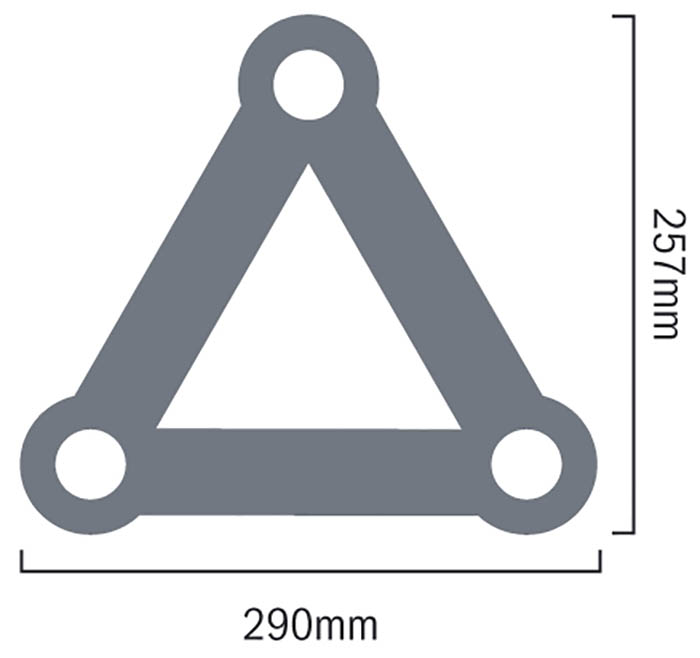

The F33 Standard Horizontal T Piece is made of high-quality aluminium alloy, which provides strength and durability while keeping the weight relatively low for ease of handling and transportation. The truss sections in the F33 series feature a standard 290mm x 290mm square profile, commonly known as "box truss," and utilize conical connectors with fastening pins for secure and reliable assembly.

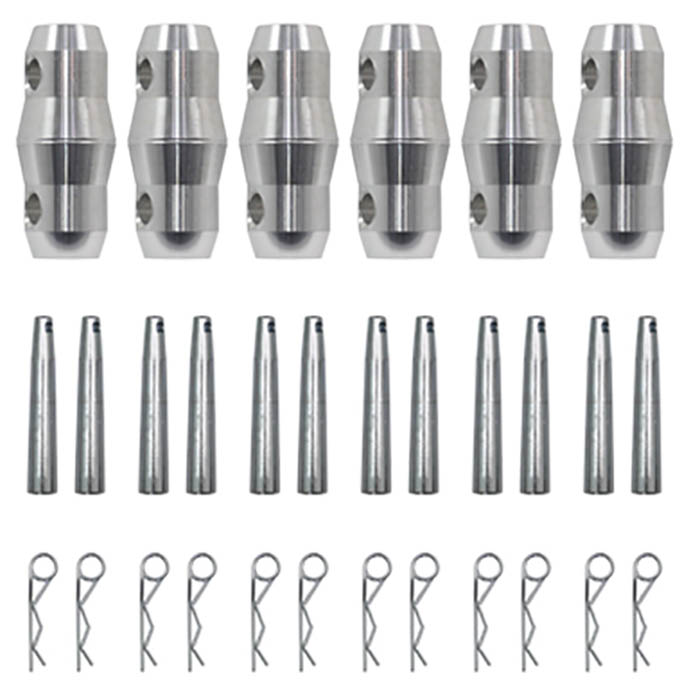

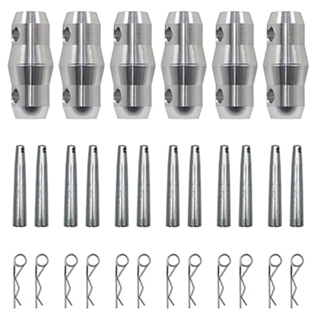

The T Piece is typically supplied with 6 conicals, twelve pins, and twelve R-clips. The conicals are used to securely connect the F33 truss sections to the corner piece, while the pins and R-clips ensure a stable and reliable connection, preventing accidental disassembly.
When using the F33 Standard Horizontal T Piece, it is important to follow the manufacturer's guidelines and load ratings to ensure the safety and stability of the truss structure. Truss systems are typically engineered and designed by professionals to ensure they can support the intended loads and meet local safety regulations.
