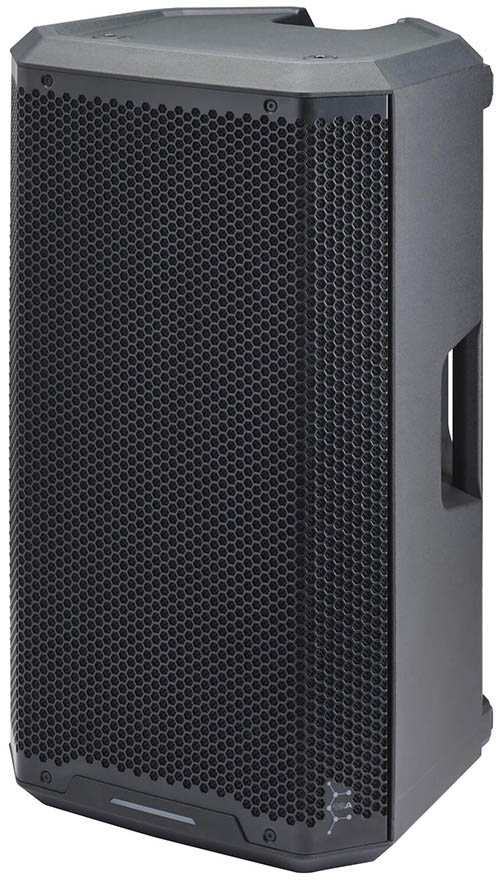

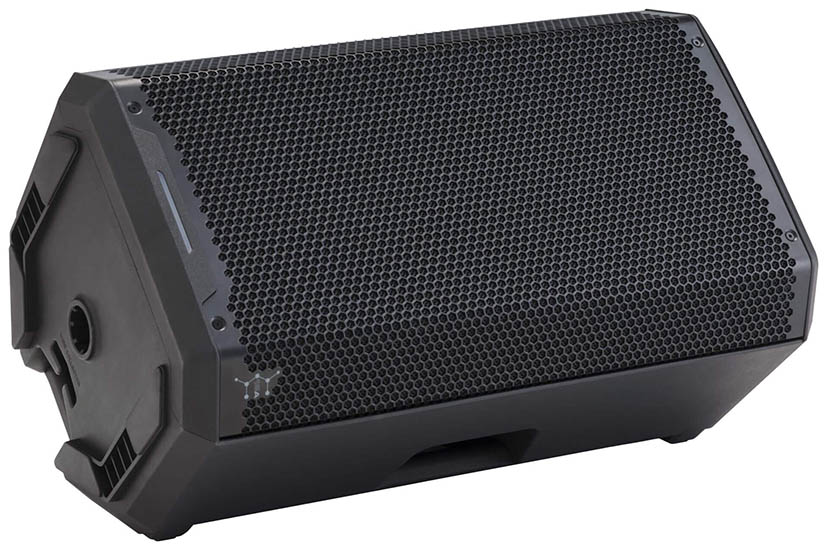

The Audiophony Carbon 12A is a highly adaptable speaker system, perfect for DJs, vocalists, entertainers, educational institutions, and corporate functions. Its horn is engineered with an extended dispersion control zone, ensuring precise and even sound coverage. The 1.35-inch compression driver, featuring a polymer diaphragm, delivers high frequencies with clarity and transparency that surpass traditional titanium-diaphragm tweeters.
Constructed with nitrogen-assisted injection-moulded plastic, the enclosure offers enhanced rigidity and durability, increasing structural strength by 20% and boosting audio performance. The system is powered by a lightweight, fan less Class D amplifier module, delivering 1000 W RMS for low frequencies and 500 W RMS for high frequencies, providing consistent, powerful sound output.

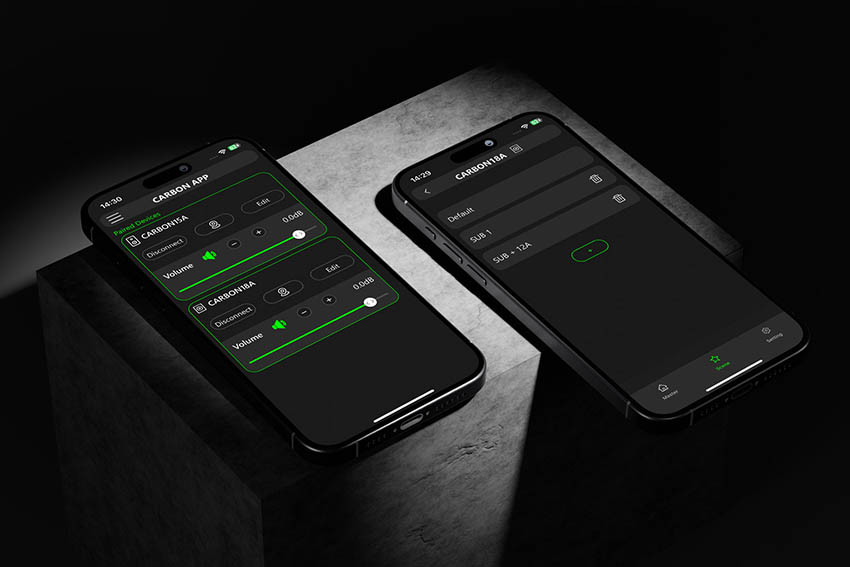

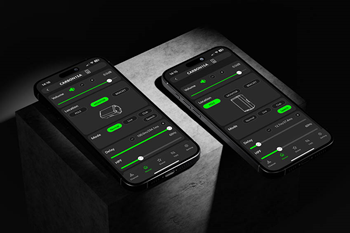

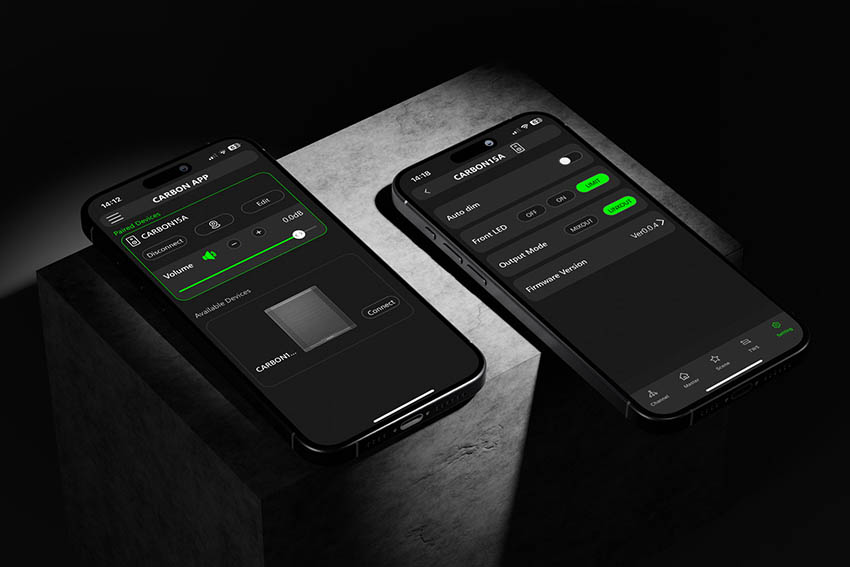

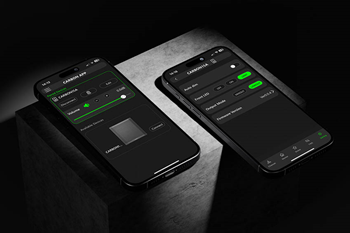

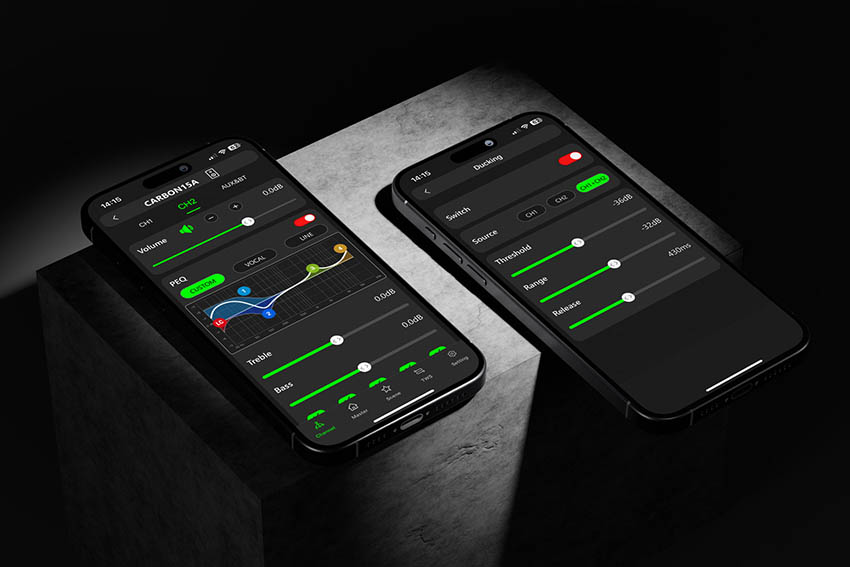

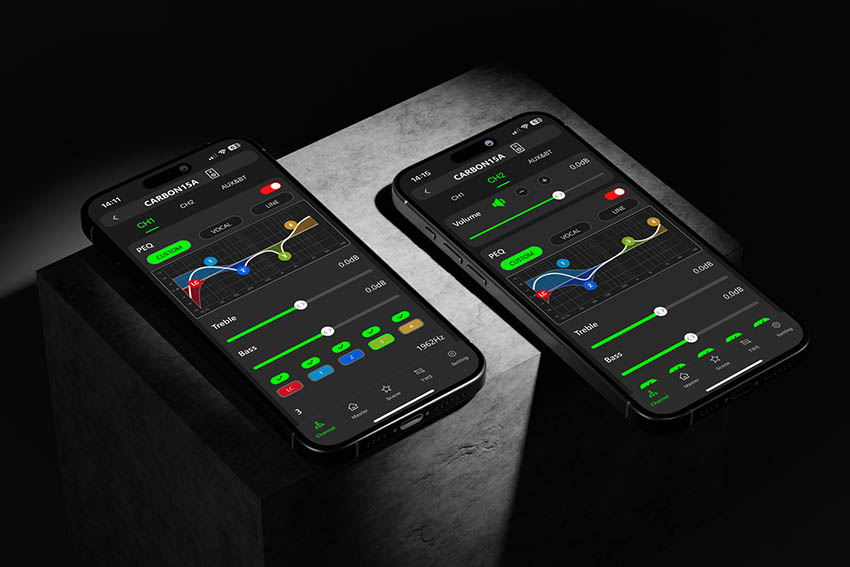

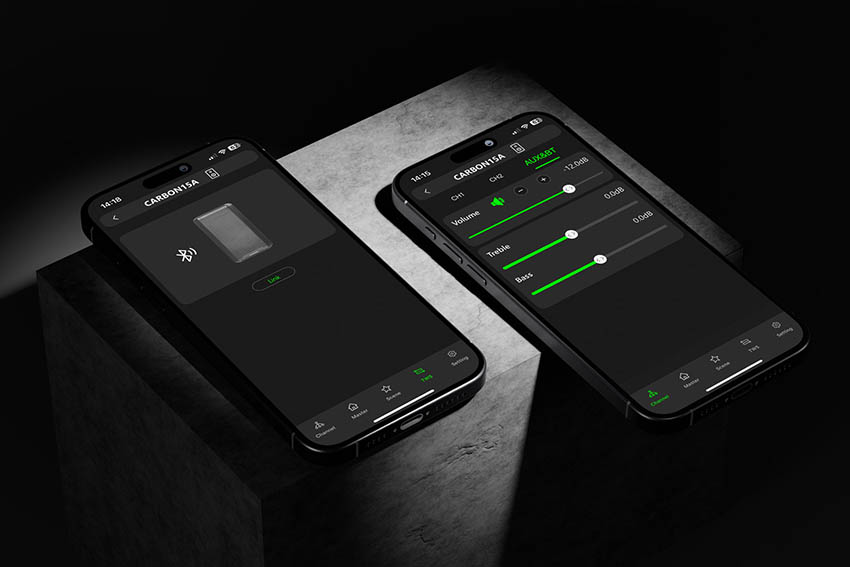

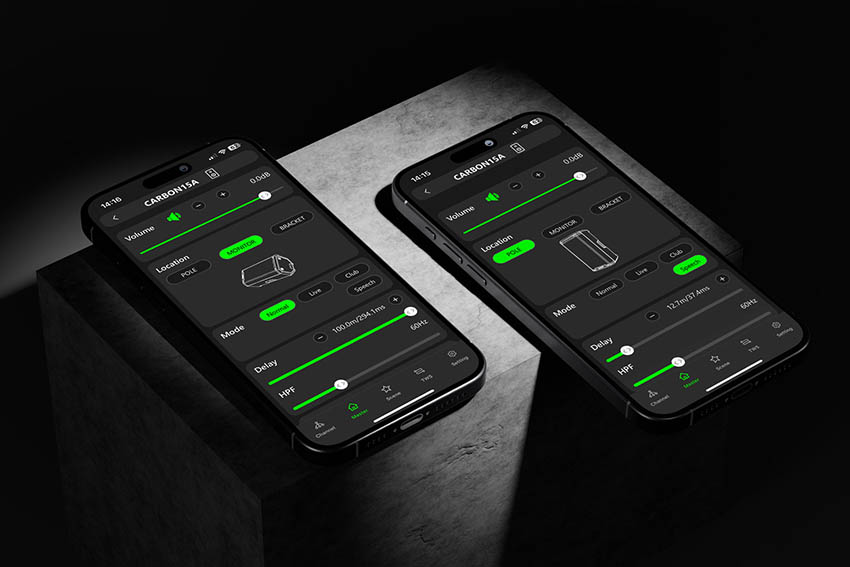

Connectivity options include two Line/Mic inputs with automatic Line/Mic switching, Bluetooth TWS, and a LINK output. A built-in DSP paired with a 2.4-inch colour display and a four-channel control app allows detailed configuration of setup, equalization, scene, position, and delay. The DSP offers extensive control over both master and channel settings, including mode selection, position adjustment, delay, high-pass filtering, ducking, equalizer tuning, and preset management. Users can also adjust output modes, enable TWS streaming, and manage front LED settings, firmware updates, and factory resets.

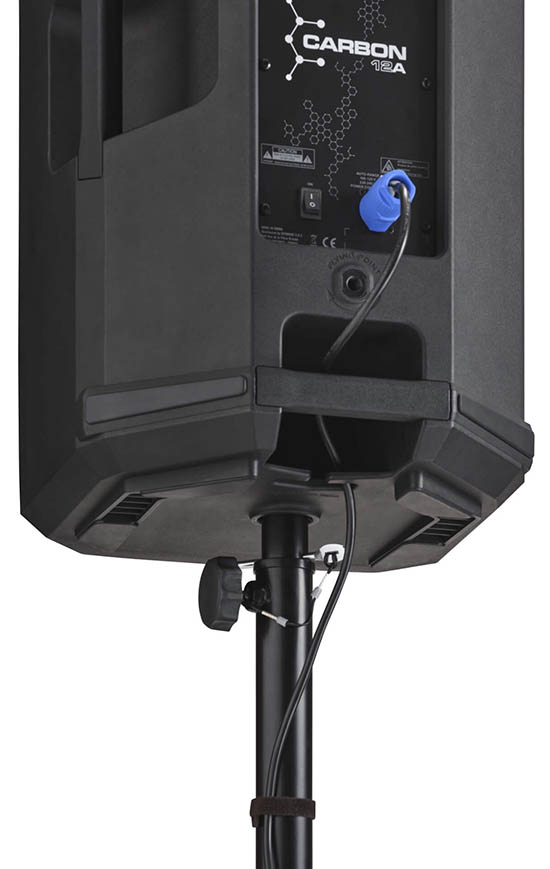

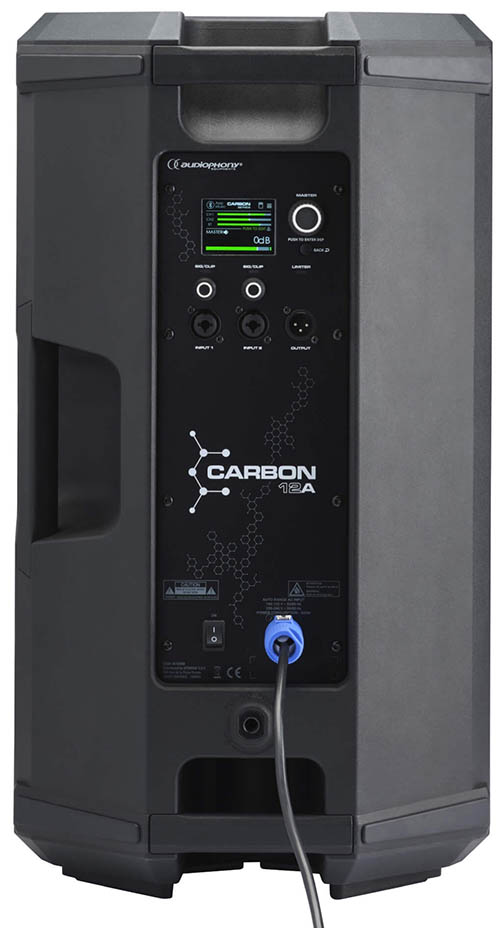

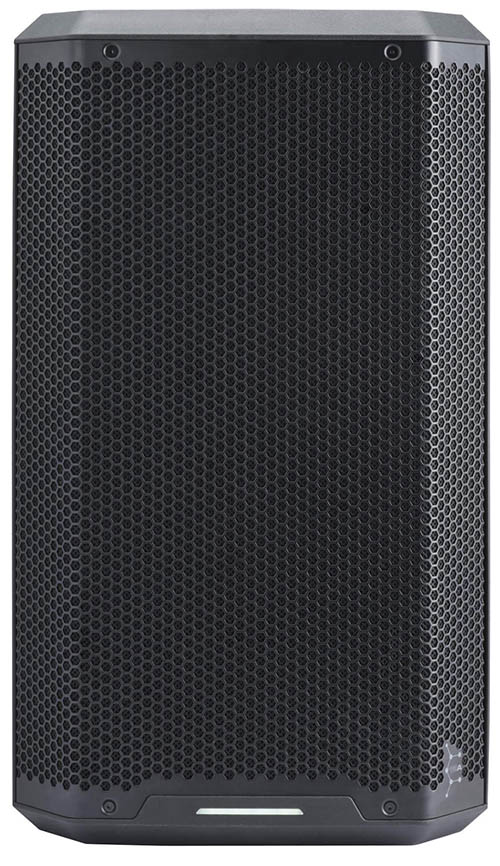

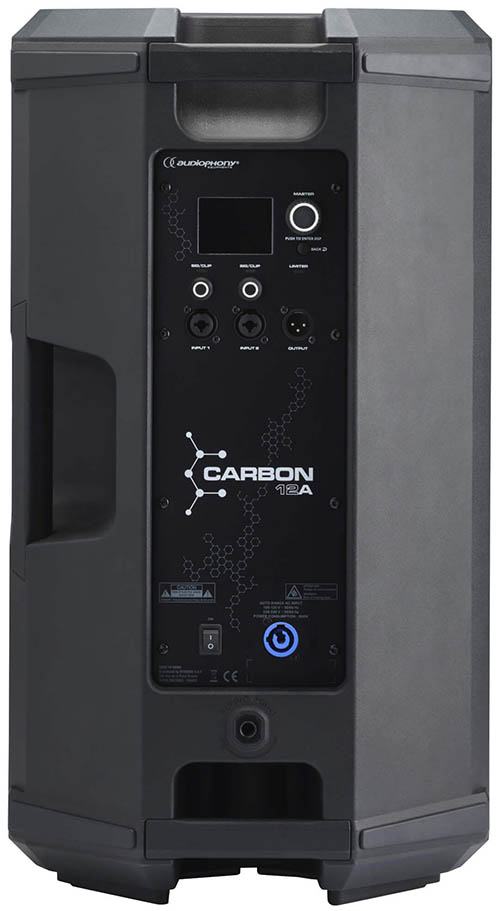

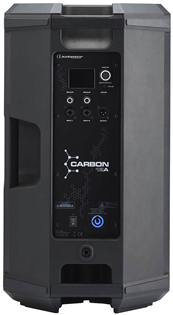

The system delivers a total of 1500 W RMS, with 1000 W RMS allocated to the bass and 500 W RMS to the treble. It runs on 220–240V AC power and provides a 90° × 70° dispersion angle. The 12-inch woofer is equipped with a 2.5-inch voice coil and a 49 Oz magnet, while the tweeter uses a high-polymer motor for crisp highs. Inputs consist of two XLR/JACK combo line inputs with auto Line/Mic detection and a Bluetooth input, while outputs include an XLR line output and Bluetooth TWS. The speaker also features built-in protections against short circuits, overheating, and overloads. Its rugged plastic enclosure, reinforced with nitrogen injection, includes a metal grille, multiple handles, M10 mounting points, a stand mount, and rubber feet for stability.
Combining robust construction, high-fidelity audio, and advanced digital control, the Audiophony Carbon 12A is engineered to meet the demands of professional audio setups and live performances.
