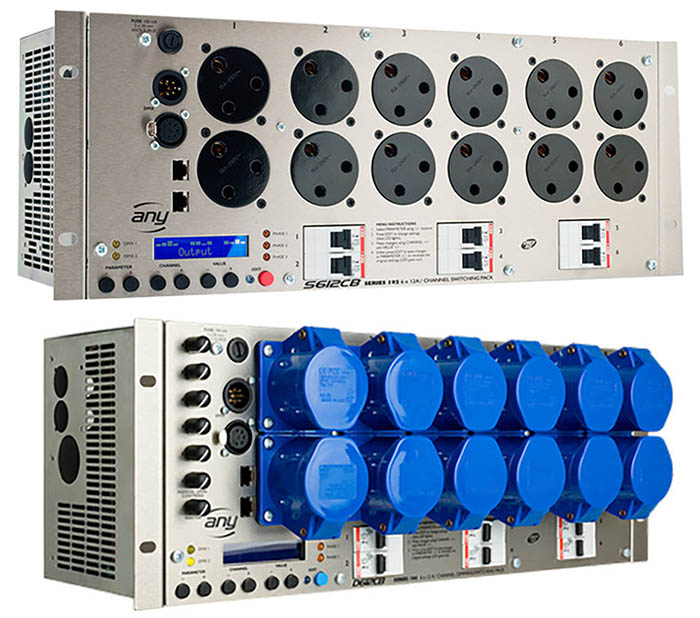

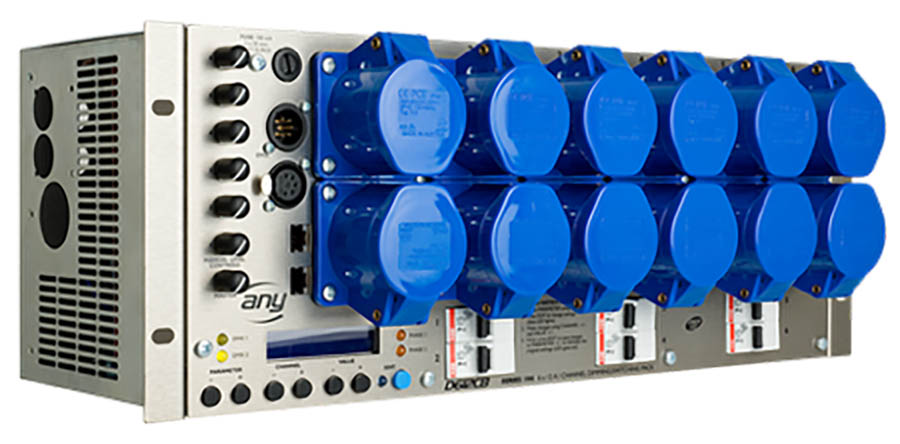

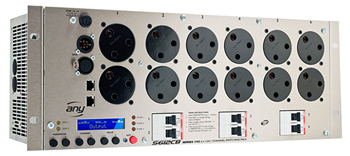

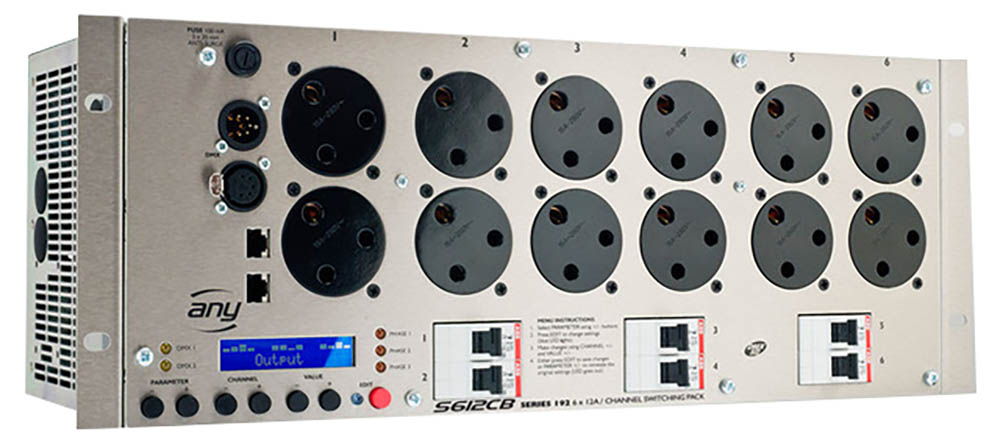

Anytronics Dimming/Switching Pack 15 or 16 Amp Sockets Wall/Rack Mount

The dimmer pack is available with either 16 amp or 15 amp sockets and includes a choice of a 6-channel dimming pack or zero-voltage switching. It is suitable for both resistive and inductive loads above 100W and operates on 200 to 250 Vrms with 1, 2, or 3 phase star connection. It uses 40A semiconductors and features XLR and RJ45 DMX connectors on all models, with an optional second DMX input available. The unit is housed in a rugged steel enclosure and can be mounted in a rack, on a wall, on a shelf, or used as a free-standing unit. Optional front panel manual level controls are available, and each channel can be individually set for dimming or switching.
