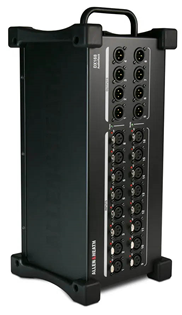

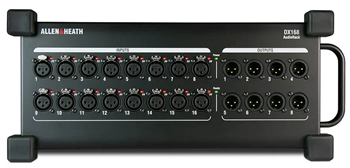

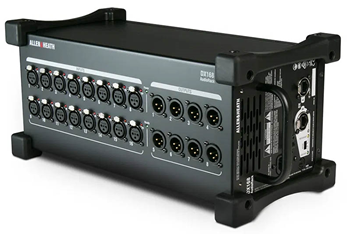

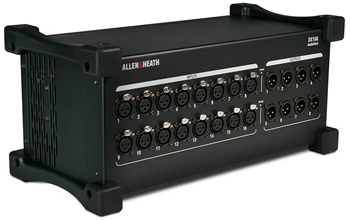

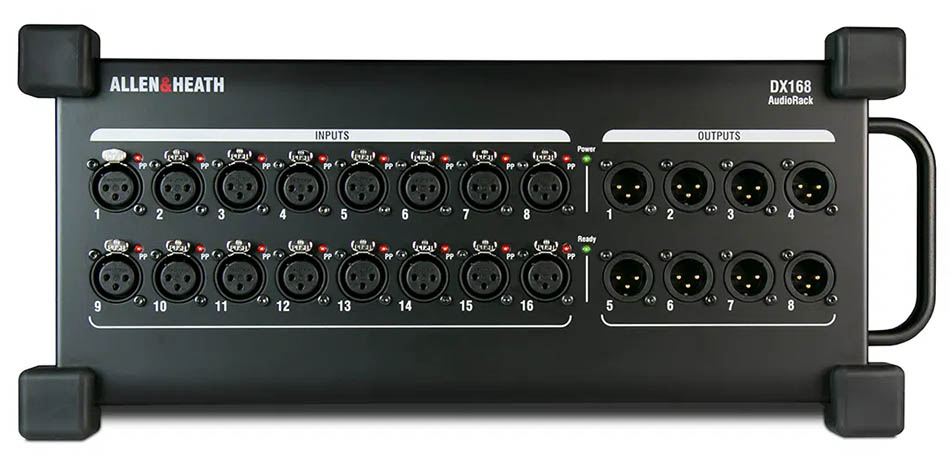

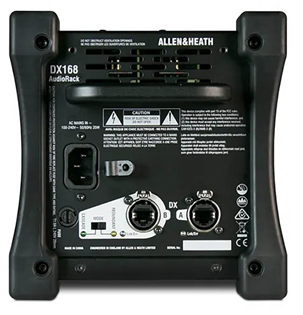

Allen & Heath DX168 Audio Rack for dLive S/C Class, SQ, QU or Avantis Systems

Code: AHDX168
Availability: Expected soon
  • 16 XLR Mic/Line Inputs and 8 XLR Line Outputs
  • Compatible with dLive S Class, C Class, SQ, and Avantis Systems
  • Rugged Metal Chassis for Stage or Rack Use
  • DX Protocol over Cat5e with Locking EtherCon Connectors
  • Daisy-Chainable or Connectable via DX Hub
  • Ideal for Touring, Rental, or Permanent Installation
£1476.00 inc VAT
Add

The Allen & Heath DX168 is a portable 16-input, 8-output digital stagebox designed for dLive S Class, C Class, SQ, and Avantis systems. Offering 16 high-quality mic/line XLR inputs and 8 XLR line outputs, this rugged expander connects over Cat5e using DX protocol for low-latency, high-fidelity audio transmission. With a compact, stage-ready chassis and robust EtherCon connectors, the DX168 is perfect for touring, rental, and installation environments needing flexible, high-performance I/O expansion.(Suitable for QU 96Khz models only)

Power Supply: 100-240Vac, 50/60Hz
Power Consumption: 35W
Inputs: 16 (XLR)
Outputs: 8 (XLR)
Dimensions: 410 x 190 x 185mm
Weight: 4.6Kg
