SIX CHANNEL MIXER AMPLIFIER

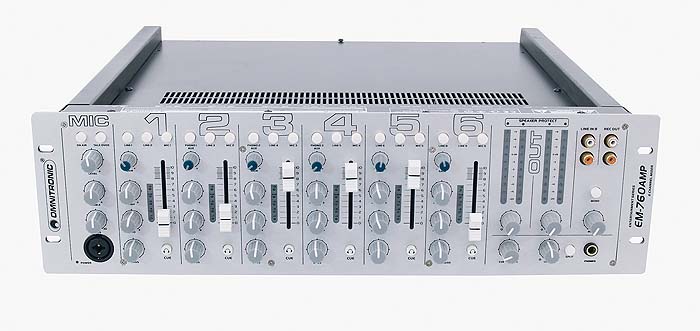

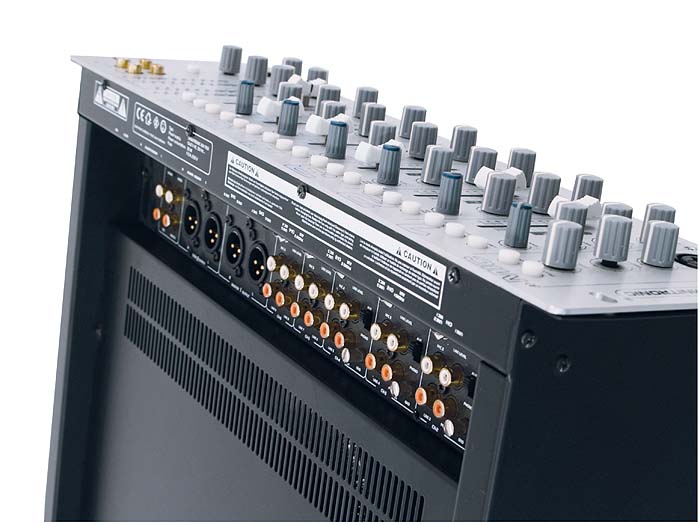

An entertainment mixer with compact design and integrated 4 channel amplifier. This is a well thought out product with a host of input options and a substantial integrated amplifier. External amplifiers can also be connected to the mixer offering more zone options. Features include: Seven channels with inputs for 7 Mics, 3 Phono/Aux and 9 Line-sources • Separate Mic channel with talk-over function • High quality and super smooth Dual Rail channel-faders • 3 Band EQ per channel (bass, middle, treble) • Headphone connection on the front panel • Split cueing function • Speaker connection via lockable Speaker plugs or terminals • 2 Master outputs via balanced XLR-connectors, -10dBV and +4dBV switchable • Additional Master outputs via 2 phono plugs.

Mains input: 240v AC
Power 8 ohms: 4 x 150w RMS
Power 4 ohms: 4 x 225w RMS
Power 2 ohms: 4 x 320w RMS

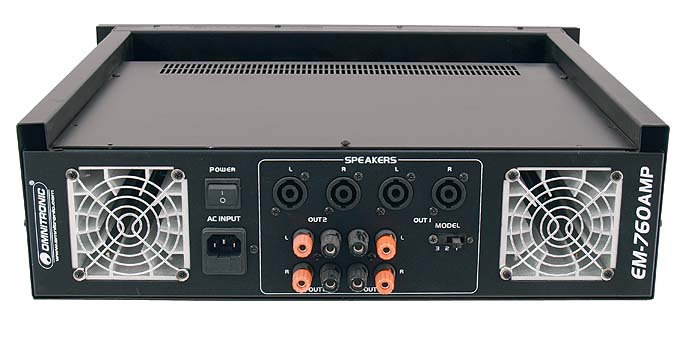

Output connection: Speaker connector
Mic inputs: 7
Line inputs: 9
Unit size: 3U
Dimensions: 483 x 440 x 135 mm
Weight: 15 kg

• CLICK HERE FOR USER MANUAL FOR EM760A
