Analogue PCB For Contractor Series

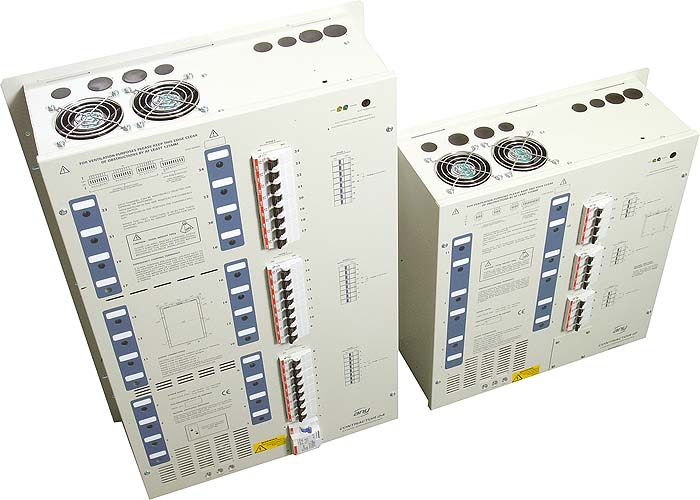

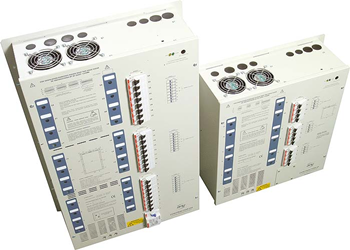

Wall mounting dimmer packs designed with the installer in mind. These packs provide an excellent solution to any install situation. The packs are provided with mounting plates and plenty of outlet gland holes ready to accept cables. The whole process of installation becomes less of a headache, allowing any qualified electrician to fit the equipment with the minimum of fuss. Features include: DMX 512 Digital input 0-10Volt Analogue input (Optional) Emergency lighting terminals for each channel Thermostatic cooling Channel test facility Dimming or switching on each channel Optional RCD SPECIFICATION The input supply can be three or single phase. Three phase with 4 channels per phase. Single phase with 12 channels. The supplied din rails limit the total continuous load to 150 Amps. Terminal inputs are provided for both DMX and the analogue control signals , if the analogue board is fitted. There is also an option to replace the supply terminal block with a 4 pole 63 Amp RCD. This can be specified at the time of ordering.

12 Channel
Max load per Ch: 10 Amps
Dimensions: H440 x W447 x D163
Weight: 18Kg
Mounting area: 550 x 500mm
24 Channel
Max load per Ch: 10 Amps
Dimensions: H651 x W447 x D163
Weight: 30Kg
Mounting area: 760 x 500mm
