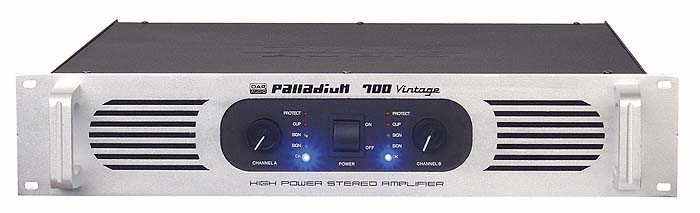

EX-DEMO DAP P-700 PALLADIUM POWER AMPLIFIER - EX DEMO

These dependable DAP power amplifiers are well designed with large low impedance power supplies for solid bass performance. Features include: Dual variable speed fans, Bridgable output; DC, Temperature, short and ultrasonic protection. Signal; clip, temperature and fault state indicators plus front panel level controls. These are robust slave amplifiers for demanding applications, on the road or for fixed installations.

DAP-700
Power 4 Ohms: 2 x 350W rms
Power 8 Ohms: 2 x 250W rms
Bridge 8 Ohms: 700W rms
Response: 20Hz - 20kHz
Damping Factor: @ 8 Ohm: 300
Slew rate: 40V/ µs
Distortion: <0.05% at 1kHz
Input Sensitivity: 775mV/1.4V
Impedance: 20K Ohms balanced
10K Ohms unbalanced
Input Connections: Jack / XLR
Ouput Connections: Speakon / Terminal
Dimensions: 400 x 482 x 89mm
Weight: 22Kg
